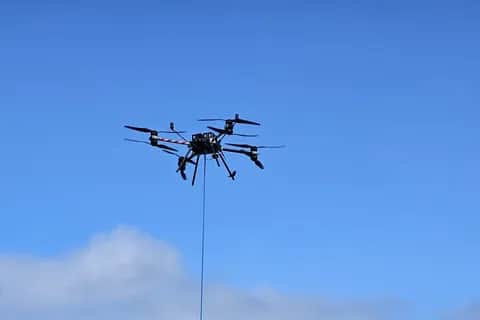

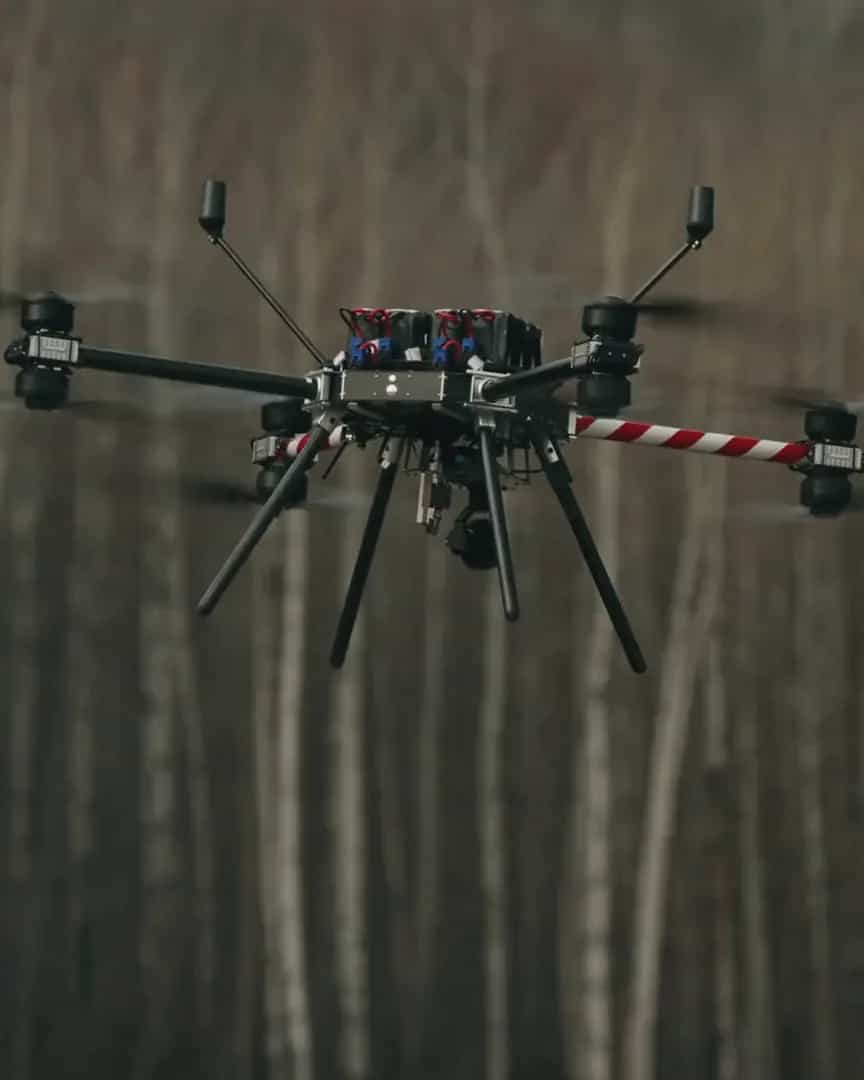

Callisto 50 Multirotor

Technical Specifications    Callisto 50 Multirotor

Aircraft Type: Multirotor (Octocopter)

Frame Size: 1400 mm (motor to motor)

Airframe Weight: 15.2 kg dry (including landing gear)

Propeller: 32” to 34” for high altitude use (810 - 860 mm)

Motor: 100 Kv, 2.7 kW rated

ESC: 52.2 V, FOC 80 A rated (100 A peak)

Battery system: 12s LiPo (50.4 V)  / LiHV packs (52.2 V)

Autopilot: ArduCopter autopilot system (ArduPilot)

GPS: Moving Baseline Heading Dual RTK system (U-Blox Zed-F9P)

LiDAR: Precision Landing & Terrain Following (<100 m range)

Pilot Radio: H16 Pro with Telemetry, Video + Data

Telemetry Radio: RFD900 or Microhard system with 4G / LTE option

Comms Range: 5 – 20 km standard (up to 40 km with suitable antennas)

Aircraft Camera: Various situational awareness & payload camera options

Take-off Weight: TOW 52 kg rated (single propulsion failure tolerant up to 52 kg TOW)

Max Effective Payload: 25 kg payload (fully redundant with single propulsion fault tolerance)

Flight Time: ≥ 40 min (with suitable LiHV battery system to maximise endurance vs payload)

Flying Speed: > 25 m/s Max, 15-20 m/s Cruise, Max Climb Rate: 10 m/s, Max Descent Rate: 10 m/s

Environmental Conditions: Suitable for all Australian conditions, mining & marine environments

VTOL: Metal Hull Boat / Moving Platform take-off and landing capable (autonomous)

Wind Tolerance: 15 m/s (54 kph) with gusts up to 25 m/s (90 kph)

Environmental Protection: designed to IP 54 (suitable for use in inclement conditions & light rain)



Payload Mounting: NATA accessory rail (STANAG 4694) mounting system with 12mm carbon tubes

Payload Power Supplies, Comms Port & connection to Autopilot:

- 5 V (regulated) x 10 A (50 W), 12.0 V (regulated) x 10 A (120 W)

- 52.2 V at 25 A (up to 1.0 kW) [main battery voltage - sagging to 36 V minimum during flight]

- Serial port, SBUS port, CAN port

- Analogue In port (x 2), PWM Servo out port (x 5)

- USB connection to autopilot

- HDMI & USB port out (H16 Pro radio / telemetry / data option)

- Ethernet port in / out (H16 Pro radio / telemetry / data option)
